Überprüfen, ob alle Verbindungen gesteckt und verriegelt sind.
Überprüfen, ob alle Verbindungen gesteckt und verriegelt sind.

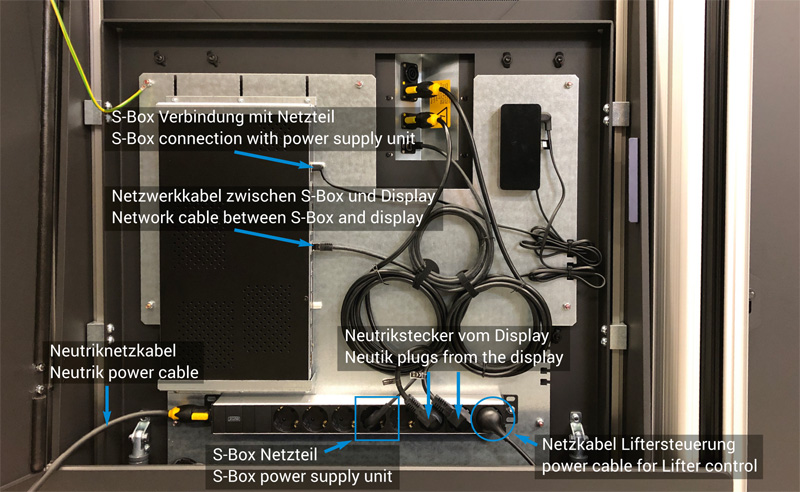

Verbindungen zur Steckerleiste:
Verbindungen S-Box:
Synchronisation Display | S-Box

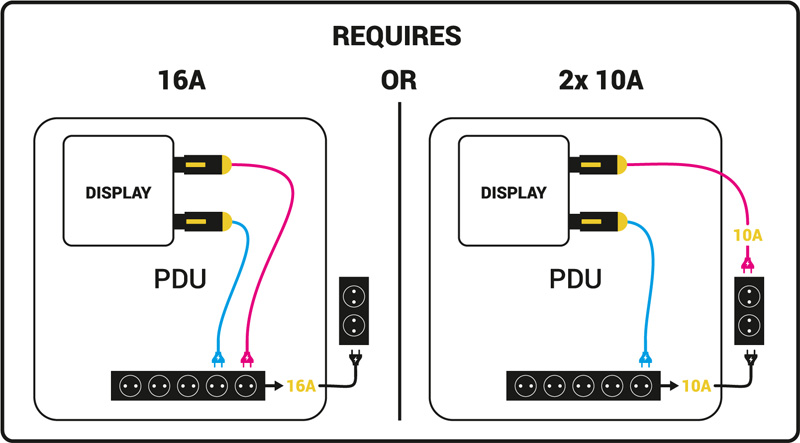

Bei der Inbetriebnahme werden die beiden Display-Hälften von der S-Box automatisch synchronisiert. Je nach Leitungsabsicherung ist zu beachten:
[Eine fehlende Synchronisation macht sich durch Bildflattern bemerkbar.]
Check that all connections are plugged in and locked.
Connections to the socket strip:
Connections S-Box:
Display Synchronization | S-Box
During start-up, the two display halves are automatically synchronized by the S-Box. Please observe the following, depending on the type of fuse used:
[If the picture flickers then synchronization did not take place.]
Betriebsspannung: 220V – 240V
Netzabsicherung: 1x 16A oder 2x 10A
Voltage input: 220V – 240V / 50/60Hz
Line fuse: One 16A or two 10 A line
