Mit der IF-Serie erweitert Samsung Electronics sein Portfolio an Feinpixel-Displays für Indoor-LED-Walls. Die Modelle mit einem Pixel Pitch von wahlweise 1,5, 2,0 und 2,5 Millimetern schaffen mithilfe von HDR-Bildoptimierung eine beeindruckend klare Content-Darstellung und bieten damit ein überzeugendes Kundenerlebnis am Point of Sale und -Interest. Zeitgleich können Anwender vom komfortablen modularen Aufbau mit Magnetmechanismus profitieren, ebenso wie von der einfachen Contentsteuerung dank der Samsung LED Signage Box (S-Box) und der intuitiven MagicInfo Software. Eine unkomplizierte frontale Wartung ermöglicht der Full Front Service.
The introduction of the I.F. 1.5-series extends Samsung Electronics portfolio of available indoor-LED walls. Models range from a pixel pitch of 1.5, 2.0 to 2.5 millimeters. The use of HDR image optimization creates impressive content displays and offers a compelling customer experience at point of sale and interest. Simultaneously users can profit from the comfortable modular constructionwith magnetic mechanisms, as well as simple content control thanks to the Samsung LED Signage Box (S-Box) and the intuitive MagicInfo software. The Full Front Service allows an easy frontal maintenance.

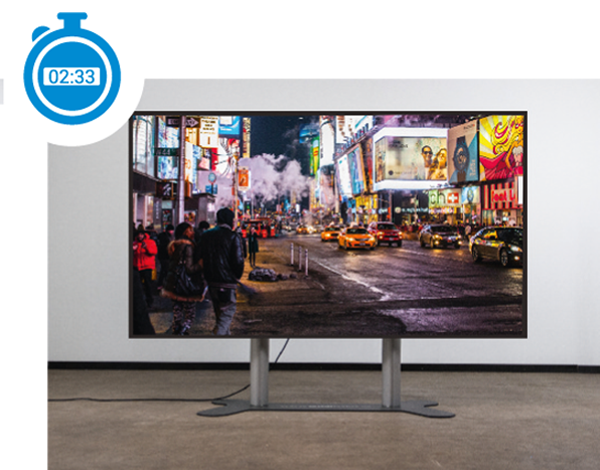

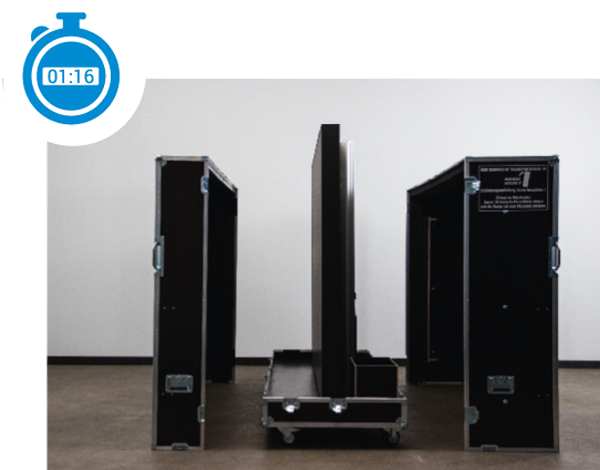

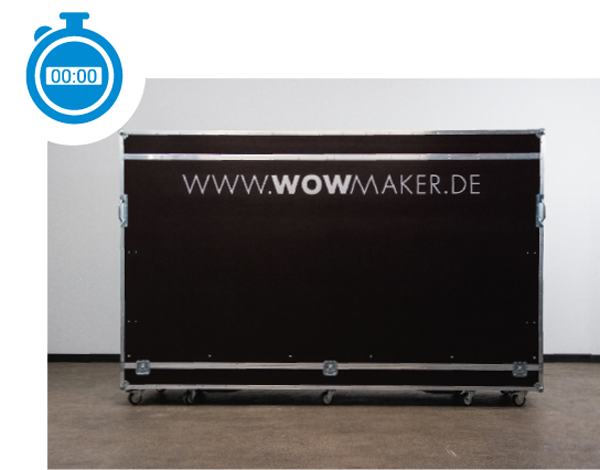

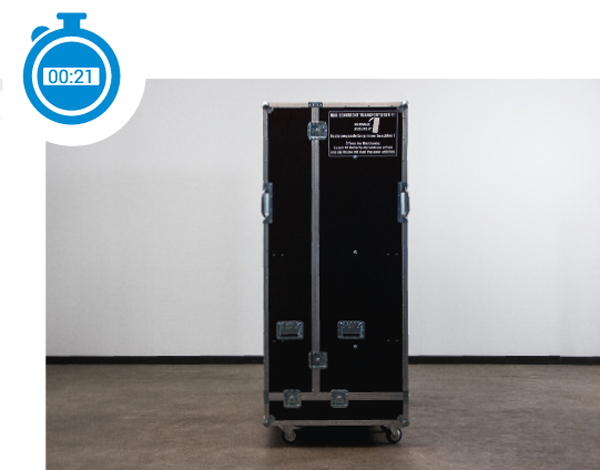

So einfach geht es: das Flightcase des WOWMAKER an den gewünschten Präsentationsplatz fahren. Nach dem Entfernen der Rück- und Fronthaube den Gerätefuß elektrisch absenken. Den Caseboden wegrollen, Mediensignal anschließen und das Display einschalten.
Und das in 2:33 Minuten!
It´s as easy as that: Drive the Flightcase of the WOWMAKER to the desired location. Lower the device foot after removing the front and back cover. Roll away the Casefloor, plug in the Media signal and connect the Display.
All that in only 2.33 minutes.
Features and Specifications , please scroll down
Eigenschaften und technische Daten | |
---|---|

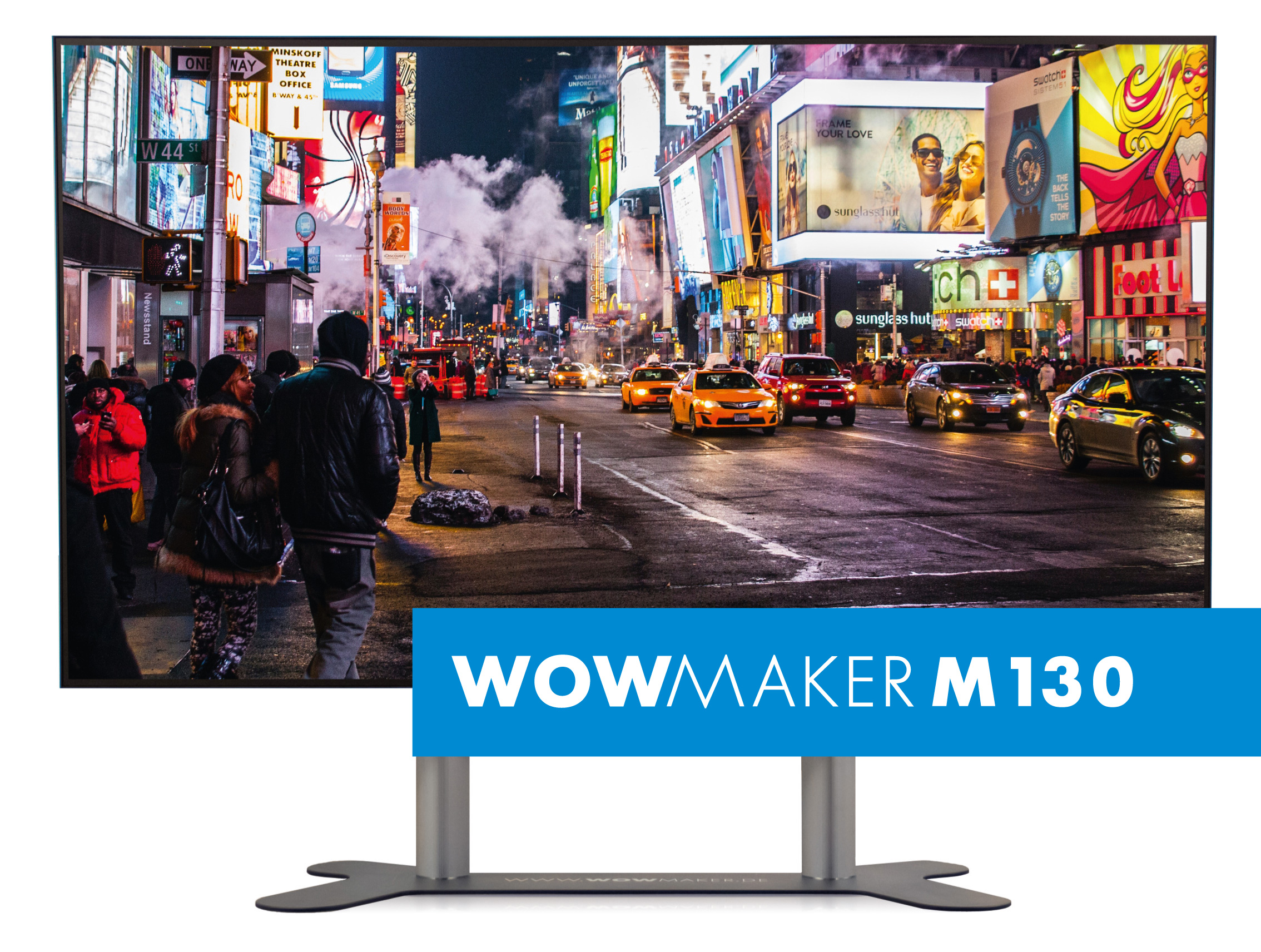

Typenbezeichnung | WOWMAKER M 130 |
Beschreibung | Mobiles 130 Zoll LED FullHD Komplettsystem mit Lifter und Flightcase |
Displaytechnik | Samsung, Serie IF 1.5 |
Gehäuse, Lifter, Flightcase | caleg Schrank und Gehäusebau GmbH |
Displaygröße | 2.895mm x 1.635mm |
Displaydiagonale | 3.300mm (130 Zoll) |
Aktiver Displaybereich | 2.880mm x 1.620mm |
Einstellbare Displayunterkante (Lifter) | Von 100mm bis 1.380mm |
Grundfläche (Gerätefuß) | 1750mm x 820mm |
Stellfläche | 3.020mm x 1.000mm |
Lichte Höhe (Lifter) | Von 1.735mm bis 2.985mm |
Auflösung | 1.920px x 1.080px |
Pixelabstand | 1,5mm |
Helligkeit | 800cd/m² (nit); Dynamic Peaking 1.600cd/m² (nit) |
Einblickwinkel | 160° horizontal und 160° vertikal |
Bildverarbeitungsoptionen | HDR, Dynamic Peaking |
Framerate | 50/60Hz |
S-Box (UHD Prozessor) | Kann werksseitig mit HDbaseT abgesetzt betrieben werden |
Eingangssignal | 2 x USB, 1 x RS232C, 2 x HDMI, 1 x DP, 1 x RJ45 |
Ausgangssignal | DP, HDBT, Digital Audio Out (Optical) |
Eingangsspannung | 230V/50Hz |
Energieverbrauch | Max.: 3,6KW; Mittelwert: 1,2KW |
Leitungsabsicherung | Eine Leitung 16A oder zwei Leitungen 10A (siehe Seite 8) |
Gesamtgewicht (mit Flightcase) | 750kg (Bodenlast: 600kg/m²) |
Transportmaße (mit Flightcase) | 1.970mm x 3.020mm x 841mm (HxBxT) |
Benötigte Personen zum Aufbau/Transport | 2 Personen |
Benötigte Verladetechnik | Verladbar mit 7,5t LKW mit Ladebordwand |
Lichte Wegmaße Transport | Durchgangstüre 2.000mm x 850mm (HxB), Rangiertiefe nach der Tür: 3.300mm |
Features and Specifications | |
---|---|
Model name | WOWMAKER M 130 |
Description | Complete mobile 130 Zoll LED FullHD system with lifter and flightcase |
Display technology | Samsung, IF 1.5 series |
Cover, Lifter, Flightcase | caleg Schrank und Gehäusebau GmbH |
Display size | 2895mm x 1.635mm |
Display diagonal | 3300mm (130") |
Active display area | 2880mm x 1620mm |
Adjustable lower display edge (Lifter) | From 100mm to 1350mm |
Base area (foot plate) | 1750mm x 820mm |
Required floor space | 3020mm x 1000mm |
Clearance height (Lifter) | From 1735mm to 2985mm |
Resolution | 1920px x 1080px |
Pixel pitch | 1.5mm |
Max. brightness | 800cd/m² (nit); Dynamic peaking 1.600cd/m² (nit) |
Viewing angle | 160° horizontal and 160° vertical |
Image quality options | HDR, dynamic peaking |
Video rate | 50/60Hz |
S-Box (UHD processor) | Can be operated with HDbaseT |
Input options | 2 x USB, 1 x RS232C, 2 x HDMI, 1 x DP, 1 x RJ45 |
Output options | DP, HDBT, Digital Audio Out (Optical) |
Voltage input | 230V/50Hz |
Power consumption | Max.: 3.6KW; Average value: 1.2KW |
Line fuse | One 16A line or two 10A lines (see Page 8) |
Total weight (with Flightcase) | 750kg (floor load: 600kg/m²) |
Transport dimensions (with Flightcase) | 1970mm x 3020mm x 841mm (HxWxD) |
Number of people required for assembly/transport | 2 people |
Required loading equipment | Loadable with 7.5t truck with tail lift |
Clear dimensions for transport | Door opening size 2000mm x 850mm (HxW), maneuvering clearance after door: 3300mm |
